QYJ-60A

STARSHIP Series ALL In One Solar Street Light

Feature:

Lighting Mode:
L>12 hours full power
T> 4 Hours full power+ 8 hours 30% brightness
M.> 4 hours full power+ 8 Hours Motion sensor Control
U> 30% brightness+ Motion sensor
1> 0-90 degree Angle adjustable bracket for different installation angel

2> Battery Power Indicators to show the battery power status, like Charging condition, full condition, how many percent power left, Short Circuit etc

3> Easy maintain of battery set, High-Strength Aluminum Alloy Frame

4> 4 different Lighting mode to satisfy different Application use

5> Professional lighting distribution function to collect more light onto certain area

6> 170lm/W, USA Bridgelux chips, High efficiency mono crystalline > 21%,High efficiency conversion

7> Long lifetime: 20 year solar panel, 10 year led panel, 5-8 year battery life time
8> UVA technology，bring high corrosion resistance，30m remote control operation

9> Solar Controller simulates the MPPT Charging scheme, it supports High-efficiency fast charging solution,
Charging Efficiency improved by 35%

10> Smart power management system, extra-long battery lifespan, meet 365 days, daily brightness

Specification:

 LED Power:400W Bridgelux chips 3030   576PCS  Led Lumens:45000LM
solar panel: 18V 430W Monocrystalline
Battery:  LIFEPO4  90AH 25.6V
IP Rate: IP65   Aluminum alloy
Product dimension:  1795*1110*60mm
Installation Height:  12-16m
Color Tempreture:6000-6500k
Charging time: 8 hours
Install Pole diameter: 70-76MM  Space between Light: 35-40m
Support: 3-7 Cloudy or Rainy Day

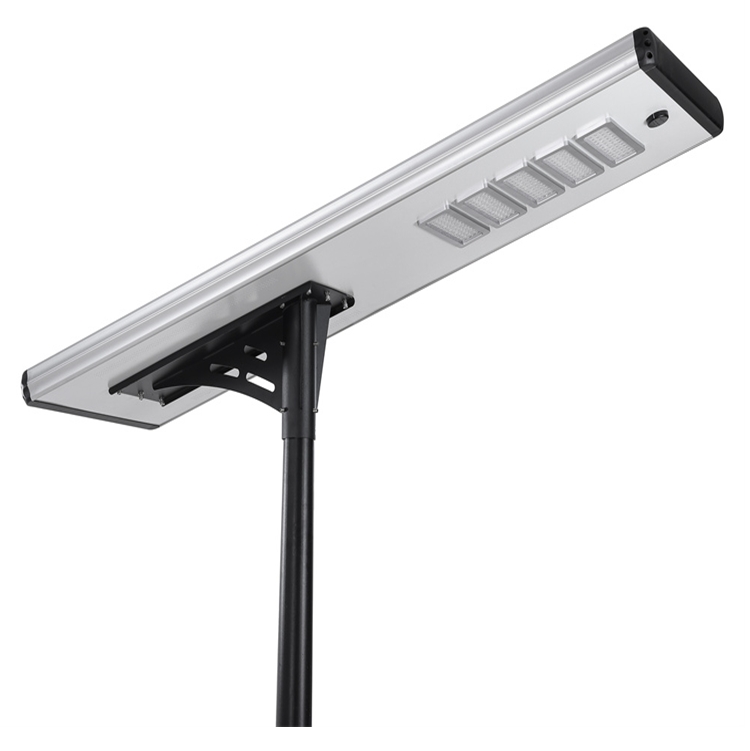

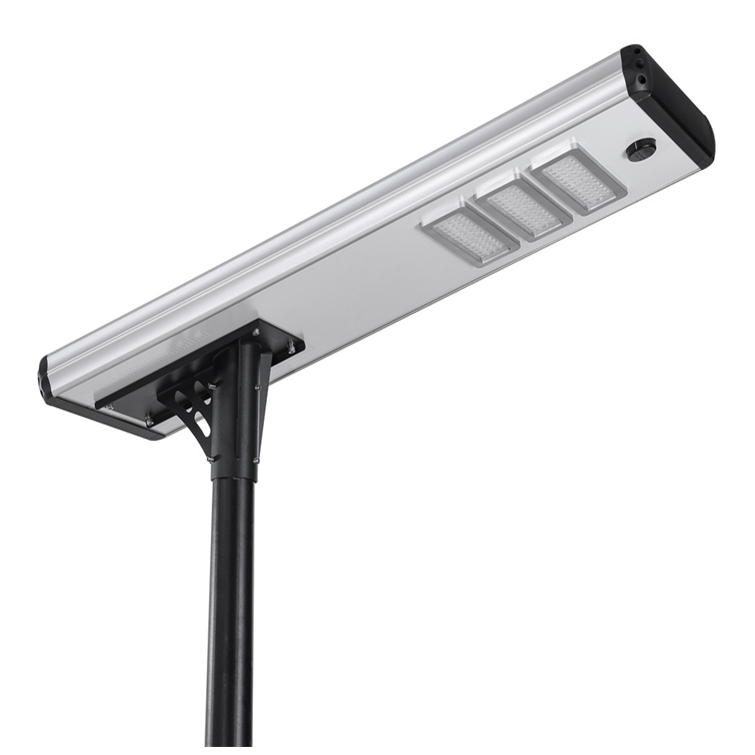

Picture:
