SG-B20

Solar 20KWH Battery Solar Generator with 5KW Inverter

Feature:

1> Inverter: Pure sine wave, low power consumption and low noise
2> All in one design, Battery, Inverter, MPPT and UPS integrate into one Box
3> LIFEPO4 Battery, 8-10 year life time, 2500 Circle
4> Wood case package for 100% safe transportation
5> Charge time: 6 hours by solar panel, 3.5 hours by AC cable

Specification: (Power Range:5KW/10KW/15KW/20KW)

Inverter ParameterPower：5KW
Inverter: Pure sine wave, low power consumption and low noise
Battery Input Voltage：51.2V
Inverter Output Voltage：230V
PV Max Input Power：5500W
PV Input Voltage：120V-500V
MPPT Max Charging Currnet：100A
Inverter Size：60*40.5*18CM

Voltage：51.2V
Capacity：30720Wh（600Ah） LIFEPO4
Discharge Current：600A
Battery Type：LiFePO4
Battery Size：（60*40.5*19.5CM）*6

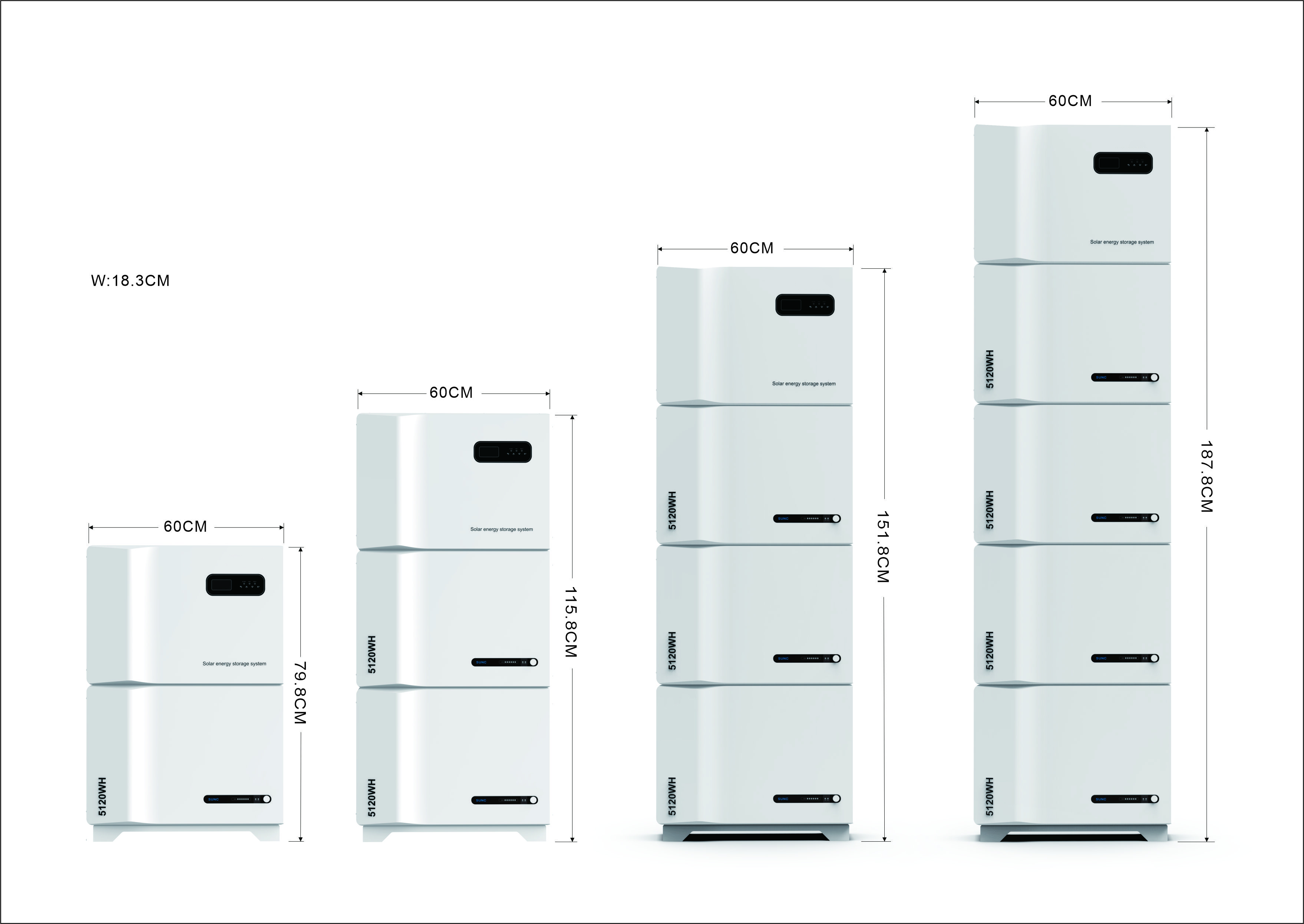

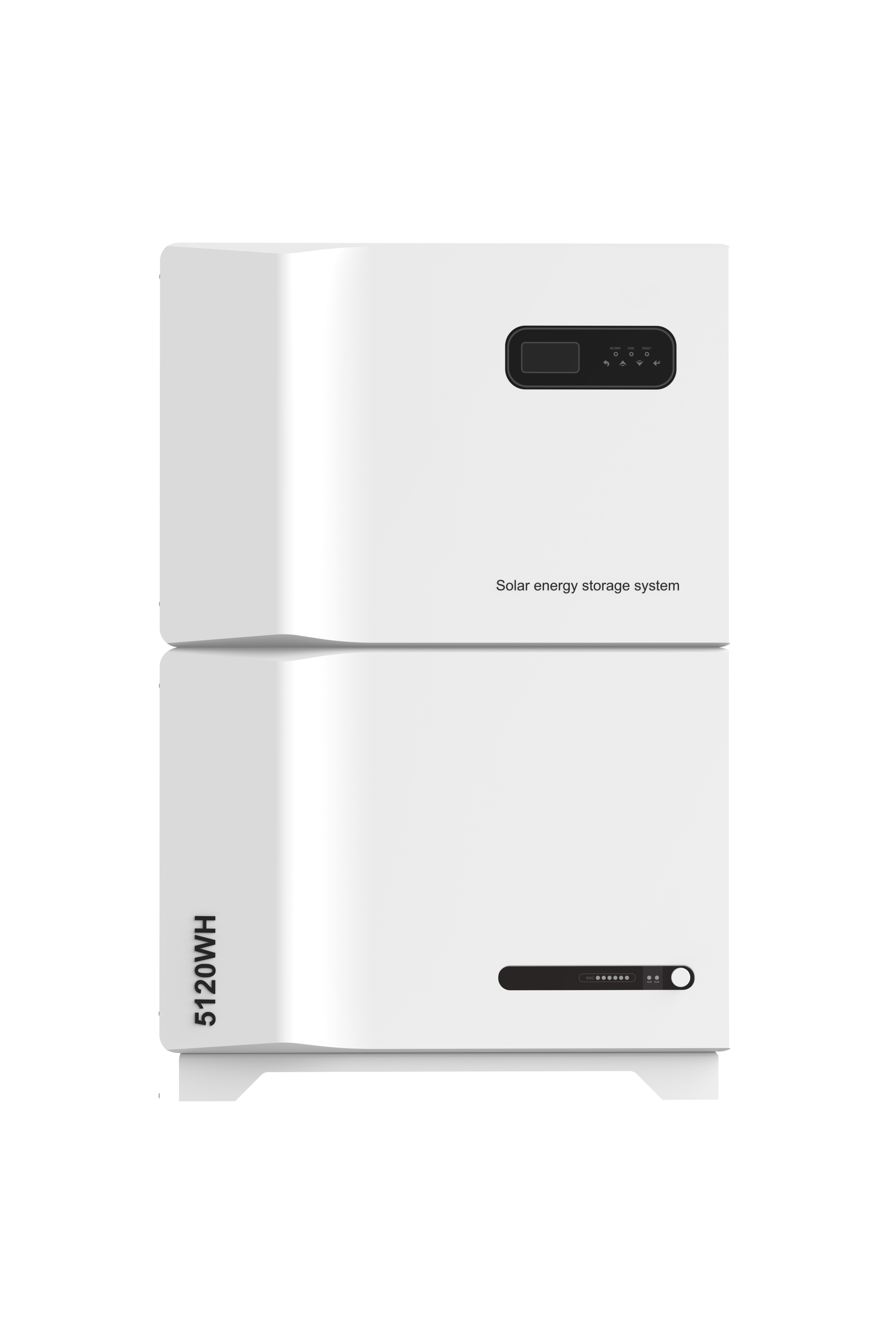

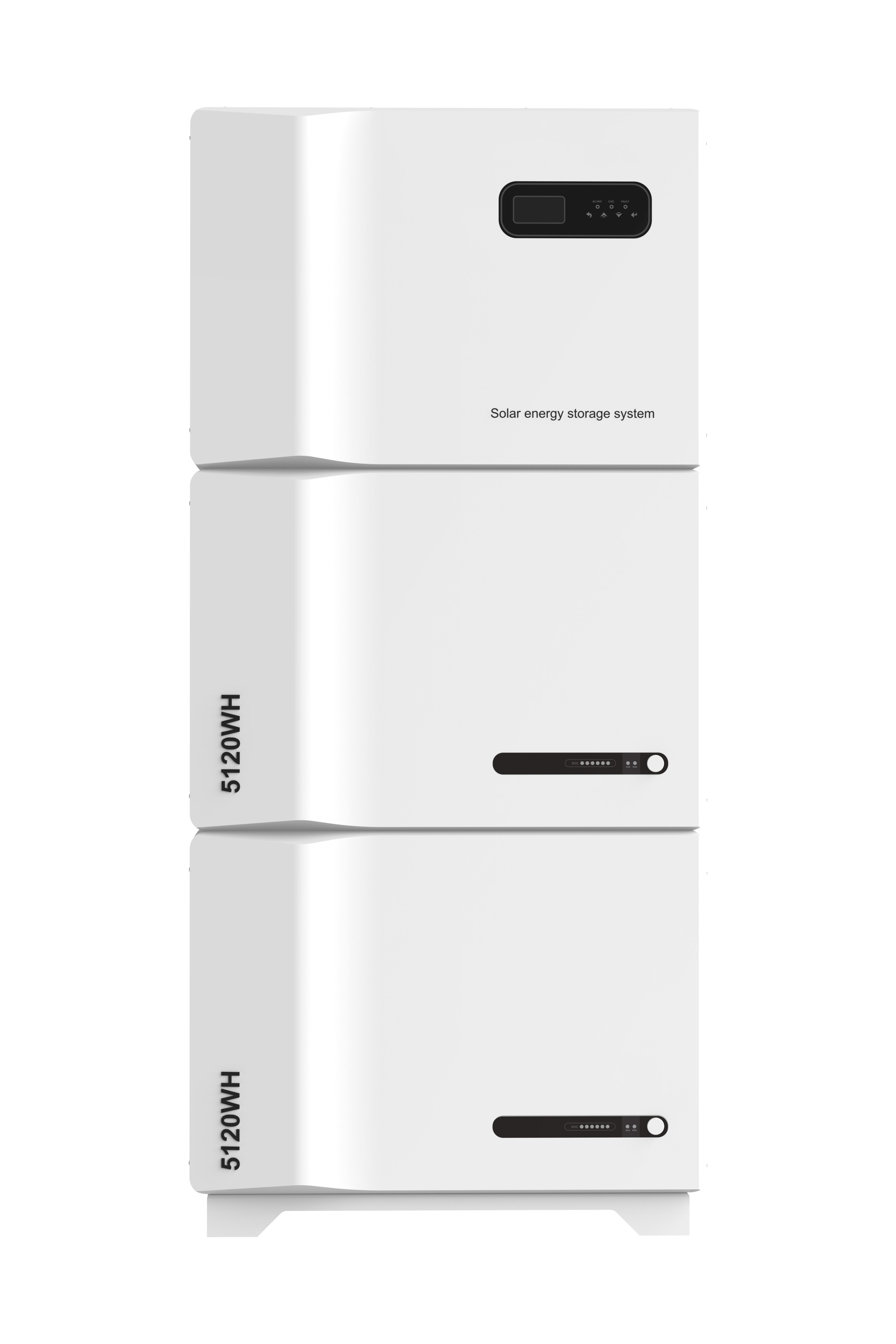

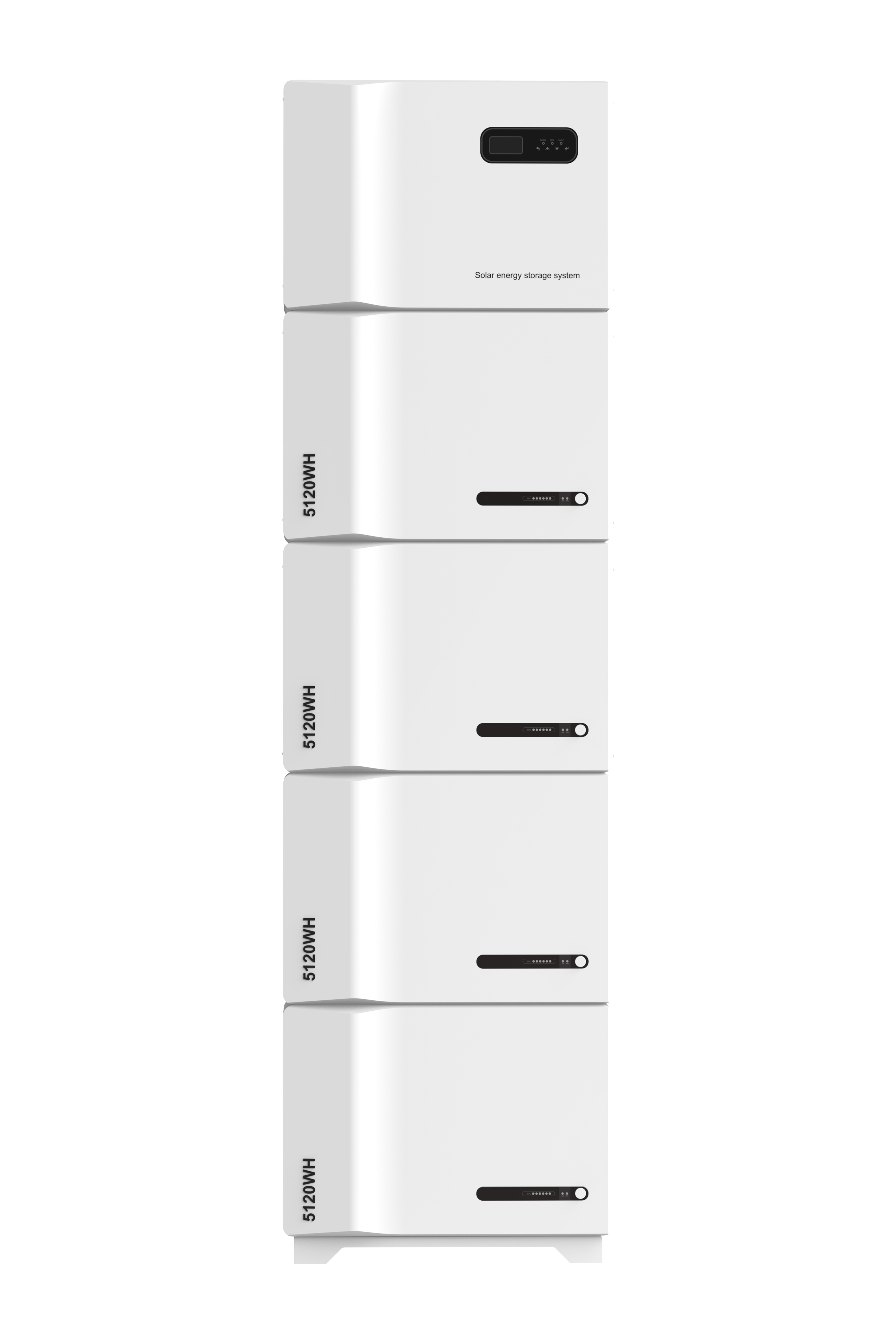

Picture:
